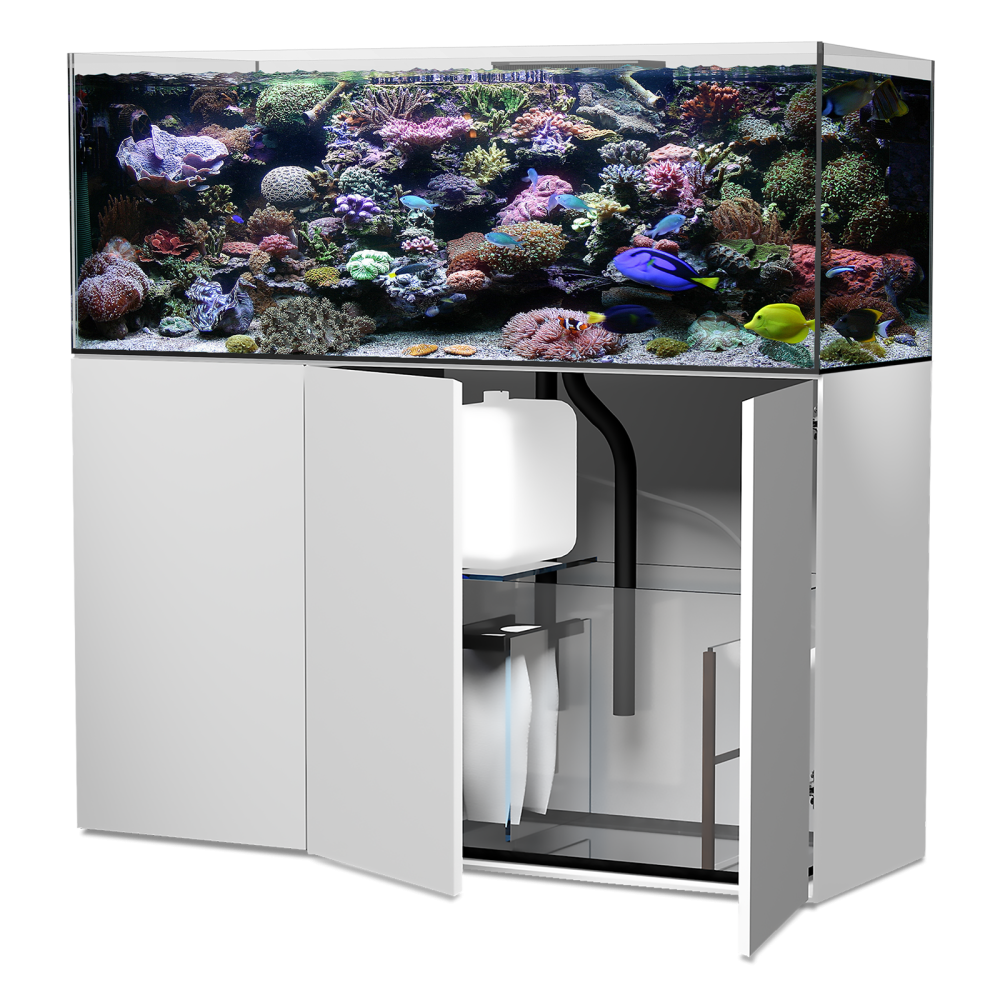

Armatus XD - Aqua Medic
- aquarium without brace bars made from ultra clear (low iron) glass with polished edges

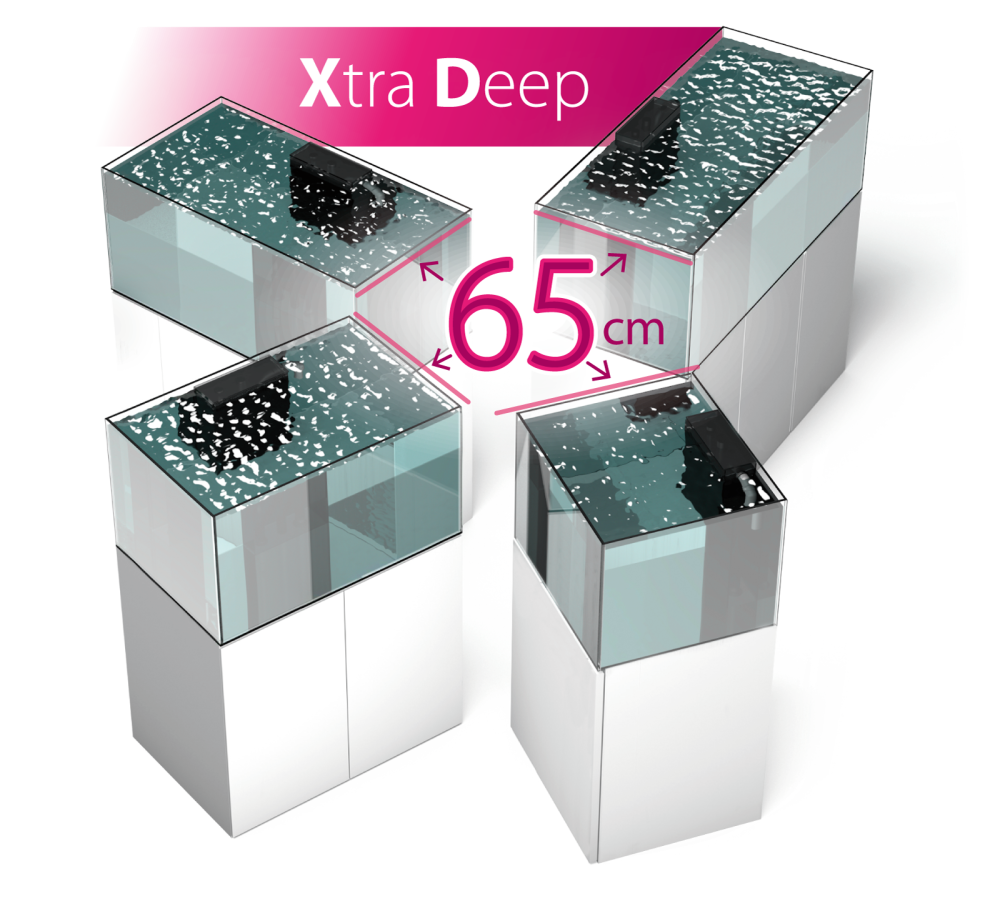

- 65 cm aquarium depth - more space for reef design
- integrated emergency overflow
- elegant easy-to-clean glass duct cover
- silent operation due to the „easy drain system“
- filter tank with adjustable water level and automatic refill
- fine filter area with replaceable filter bags
- transportable refill tank
- glass cabinet filter with pre-filter chamber, two clear water chambers for use with additional biological and mechanical filters (e. g. skimmer, multi reactor, etc.) and filter media
- high-quality cabinet with softclose, white high gloss
- extra stable cabinet walls of 28 mm (for the 500 and 575 version also the middle wall)
- large base cabinet with aeration and ventilation
- incl. drip pan
- the cabinet is supplied flat packed for easy transportation and home assembly with few parts
Version | 300 | 375 |
Dimensions aquarium (l x w x h) app. | 75 x 65 x 55 cm | 100 x 65 x 55 cm |
Glass thickness front pane | 10 mm | 12 mm |
Glass thickness side pane | 10 mm | 10 mm |
Glass thickness back wall | 8 mm | 10 mm |
Glass thickness bottom pane | 10 mm | 10 mm |
Volume aquarium app. | 245 l | 325 l |
Water level app. | 50 cm | 50 cm |
Dimensions filter cabinet (l x w x h) app. | 60 x 42 x 34 cm | 60 x 42 x 34 cm |
Water level filter cabinet max. | 16 - 23 cm | 16 - 23 cm |
Dimensions skimmer compartment | 43 x 27 cm | 43 x 27 cm |
Dimensions pump compartment | 43 x 11 cm | 43 x 11 cm |
Volume filter cabinet app. | 55 l | 55 l |
Total volume | 300 l | 380 l |
Volume refill tank | 10 l | 10 l |
Dimensions incl. cabinet (l x w x h) app. | 75 x 65 x 145 cm | 100 x 65 x 145 cm |
Dead weight app. | 138 kg | 166 kg |
Inlet to the filter Ø approx. | 40 mm | 40 mm |
Return line to the aquarium (hose /inside) Ø approx. | 25 mm | 25 mm |
Emergency overflow Ø approx. | 25 mm | 25 mm |
Version | 500 | 575 |
Dimensions aquarium (l x w x h) app. | 125 x 65 x 55 cm | 150 x 65 x 55 cm |
Glass thickness front pane | 15 mm | 15 mm |
Glass thickness side pane | 12 mm | 12 mm |
Glass thickness back wall | 10 mm | 12 mm |
Glass thickness bottom pane | 12 mm | 12 mm |
Volume aquarium app. | 405 l | 490 l |
Water level app. | 50 cm | 50 cm |
Dimensions filter cabinet (l x w x h) app. | 90 x 42 x 34 cm | 90 x 42 x 34 cm |
Water level filter cabinet max. | 16 - 23 cm | 16 - 23 cm |
Dimensions skimmer compartment | 51 x 40 cm | 51 x 40 cm |
Dimensions pump compartment | 40 x 20 cm | 40 x 20 cm |
Volume filter cabinet app. | 85 l | 85 l |
Total volume | 490 l | 575 l |
Volume refill tank | 16 l | 16 l |
Dimensions incl. cabinet (l x w x h) app. | 125 x 65 x 145 cm | 150 x 65 x 145 cm |
Dead weight app. | 225 kg | 256 kg |
Inlet to the filter Ø approx. | 40 mm | 40 mm |
Return line to the aquarium (hose /inside) Ø approx. | 25 mm | 25 mm |
Emergency overflow Ø approx. | 25 mm | 25 mm |
